Product Review: Pelletizing Disc

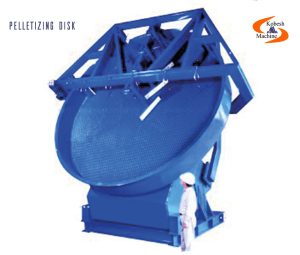

  • Brief Product Description A Pelletizing Disc (also known as a granulation disc) is a device that transforms powdered or granular materials into uniformly spherical pellets by adding an appropriate amount of moisture and binder. This process, called pelletizing or granulation, is crucial for improving the physical properties of materials (such as strength, transportability, and dissolution rate), facilitating further processing, and reducing dust in industries like mining (iron ore pellet production), fertilizer manufacturing, animal feed production, chemical industries, and cement production.

  • Structural Features

    • Disc: The main component of the machine, set at a specific angle to the horizontal, where materials are tumbled. The inner surface of the disc usually has ridges or grooves to aid in the formation and rolling of pellets.
    • Frame/Base: The structure that supports the disc and the drive system.
    • Drive System: Includes an electric motor and gearbox that rotate the disc at an adjustable speed.
    • Angle Adjustment Mechanism: A mechanism to precisely adjust the disc’s angle, which affects the size and quality of the pellets.
    • Water Spray System: Nozzles for precise and uniform spraying of water or binder solution onto the rotating materials.
    • Scraper (in some designs): To prevent material buildup on the upper part of the disc and guide it to the rolling zone.

  • Mechanism of Operation The powdered or granular raw material, along with a binder (such as water, lime, or specific chemicals), is fed from the inlet chute onto the top of the rotating disc. Simultaneously, water or binder solution is sprayed onto the materials through nozzles. Centrifugal force generated by the disc’s rotation propels the materials towards the disc’s edge. Meanwhile, the ridges and grooves on the disc’s surface cause the particles to roll and collide with each other and with the moisture, causing them to agglomerate and form small lumps. These lumps grow larger and more spherical as they roll, eventually falling off the edge of the disc as ready pellets. The disc’s angle and rotation speed are key factors in controlling the size and quality of the produced pellets.

  • Build Specifications

    • Disc Material: Carbon steel with wear-resistant coating (e.g., manganese steel or rubber/polyurethane lining).
    • Frame Material: Carbon steel with industrial paint coating.
    • Disc Inner Lining Type: Rubber, polyurethane, or wear-resistant steel plates.
    • Drive System: Electric motor with a worm or gear reducer.
    • Water Spray System Type: Nozzles with adjustable flow rate and spray pattern.
    • Angle Adjustment System: Mechanical screw or hydraulic system.

Component Introduction

  • Component Descriptions
    • Pelletizing Disc: The main disc where materials are processed.
    • Frame and Base: The supporting structure of the machine.
    • Motor and Gearbox: Provides the rotational power.
    • Angle Adjustment Unit: Mechanism for changing the disc’s angle.
    • Water Spray Nozzles: For spraying liquids.
    • Feed Chute: For directing raw material into the disc.
    • Scraper (if present): For cleaning the disc surface.
    • Wear Linings: Protective layers for the disc.

We are a parts manufacturer, contact us for parts procurement As a specialized manufacturer of Pelletizing Disc components, including discs with wear-resistant coatings (such as rubber, polyurethane, or alloy steel), drive systems, frames, and spray nozzles, we are ready to meet your needs. The quality of spare parts directly impacts the efficiency and lifespan of your pelletizing machine. For price inquiries, consultations, and parts orders, please contact us.

Projects

  • Description: Our Pelletizing Discs have been utilized in numerous projects across various industries, including iron ore pelletizing for steel mills, production of various chemical and organic fertilizers, manufacturing of animal feed, and also in chemical processing and cement production. The optimized design and durable materials used in our discs ensure the production of high-quality pellets, efficient energy consumption, and satisfactory production output for our clients nationwide. We have the capability to provide custom solutions for pelletizing discs tailored to the specific requirements of each project.
