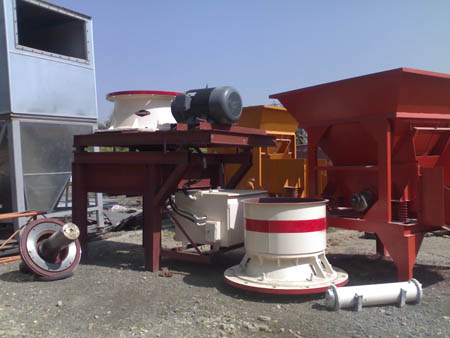

Cone Crusher

A cone crusher is similar in operation to a gyratory crusher, with less steepness in the crushing chamber and more of a parallel zone between crushing zones. A cone crusher breaks rock by squeezing the rock between an eccentrically gyrating spindle, which is covered by a wear resistant mantle, and the enclosing concave hopper, covered by a manganese concave or a bowl liner. As rock enters the top of the cone crusher, it becomes wedged and squeezed between the mantle and the bowl liner or concave. Large pieces of ore are broken once, and then fall to a lower position (because they are now smaller) where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher.

Gyratory Crusher

A gyratory crusher (or cone crusher) is similar in basic concept to a jaw crusher, consisting of inner and outer vertical crushing cones; the outer cone is oriented with its wide end upward, and the inner cone is inverted relative to the outer with its apex upward. The inner cone has a slight circular movement, but does not rotate; the movement is generated by a cam or eccentric arrangement. As with the jaw crusher, material travels downward between the two cones being progressively crushed until it is small enough to fall out through the gap between the two cones at the bottom.

A gyratory crusher breaks rock by squeezing the rock between an eccentrically gyrating spindle (which is covered by a wear resistant mantle) and the enclosing concave hopper. As run-of-mine rock enters the top of the gyratory crusher, it becomes wedged and squeezed between the mantle and concaves. Large pieces of ore are broken once and then fall to a lower position (because they are now smaller) where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher
