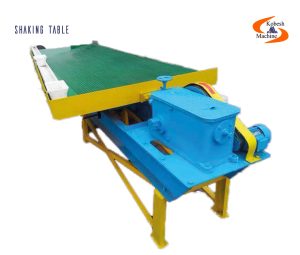

Product Review: Shaking Table
Brief Product Description A Shaking Table is a specialized device used for the precise and efficient separation of minerals based on differences in density, particle size, and shape. It is utilized in the mining industry (for gold, tin, tungsten, and other valuable minerals) as well as in industrial and research laboratories. This device, by creating controlled vibrations and water flow, enables the separation of heavier particles from lighter ones, producing high-purity concentrates.
Structural Features shaking table
- Deck: Typically made of durable wood, fiberglass, or metal alloys, featuring riffles (grooves) that aid in material guidance and better separation.
- Drive System: Consists of an electric motor, an eccentric or crankshaft mechanism, and a system for adjusting vibration amplitude and frequency.
- Water System: Includes water flow control valves for washing and assisting particle separation.
- Frame or Main Body: A robust metal structure that supports the entire assembly.
- Tilting System: Allows for adjustment of the table’s longitudinal and lateral slopes to optimize the separation process.
Mechanism of Operation Mineral feed (concentrate or input material) is fed onto the head of the shaking table along with water. The drive system transmits reciprocating vibratory motions with adjustable frequency and amplitude to the table. A controlled flow of water passes alongside the table, assisting in particle movement. Due to the table’s motion and water flow, heavier particles (like valuable minerals) move along the riffles towards the end of the table (final product) due to their greater inertia, while lighter particles (tailings) are guided towards the side of the table (tailings discharge) by the water flow. Precise adjustment of the table’s tilt, vibration amplitude, frequency, and water flow rate is key to achieving optimal separation.
Build Specifications shaking table
- Deck Material: Waterproof wood, fiberglass, or coated metal.
- Riffle Material: Wood, durable plastic, or metal.
- Frame Material: Steel with epoxy paint or galvanized coating.
- Motor: Single-phase or three-phase electric motor with appropriate power.
- Amplitude/Frequency Adjustment System: Mechanical or electronic.
Component Descriptions shaking table
- Deck Plate: The main surface where materials are processed.
- Riffles: Ridges on the deck surface that aid in separation.
- Electric Motor: The power source for the drive system.
- Eccentric/Crankshaft Mechanism: Converts the motor’s rotational motion into reciprocating motion.
- Linkages and Connecting Rods: Transmit motion from the drive mechanism to the deck.
- Tilting Mechanism: Mechanism for adjusting the table’s angle (usually with adjustment screws).
- Water Control Valves: Regulate the inflow of water.
We are a parts manufacturer, contact us for parts procurement As a specialized manufacturer of Shaking Table components, we supply robust deck plates, standard riffles, precise drive mechanisms, and high-quality mechanical parts. The quality and accuracy of these components directly impact the efficiency and purity of your final product. For price inquiries and to order spare and consumable parts, please contact us.
Projects shaking table
- Description: Our Shaking Tables have been deployed in a wide range of mining projects, including gold processing plants in various regions, industrial mineral mines, and mineral exploration research projects. These devices, with their high reliability, excellent separation efficiency, and ability to operate in harsh environmental conditions, have significantly contributed to the effective extraction of valuable minerals and increased mine productivity. The capability to precisely adjust operational parameters makes these tables suitable for processing various types of mineral feed.
