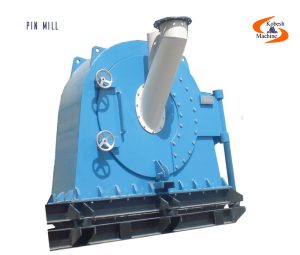

pin mill
The Pin Mill is a specialized machine for the grinding and powdering process, particularly designed for materials of medium to high hardness, as well as substances requiring the production of very fine (micronized) powders. This mill utilizes rotating discs equipped with numerous stationary and/or rotating pins to break down materials into fine particles through centrifugal force and impact with these pins. The Pin Mill is highly suitable for applications in industries such as food (e.g., spices, sugar), chemicals, pharmaceuticals, paint production, and powdered minerals. This machine is capable of producing products with uniform and very fine particle sizes and is considered an effective and economical solution due to its simple design and ease of maintenance.
Structural Features
- Rotating Pin Design: Consists of two discs (one stationary and one rotating, or both rotating in opposite directions) on which rows of sturdy steel pins are mounted.
- Robust Body: The grinding chamber is constructed from stainless steel or wear-resistant carbon steel to resist abrasion and corrosion.
- Cooling System (Optional): Some models are equipped with a cooling system (e.g., water or air jacket) to prevent temperature increases in sensitive materials during the grinding process.
- Adjustable Product Size: The particle size of the output is usually controllable by adjusting the rotational speed of the discs or by changing the type and arrangement of the pins.
- Ease of Cleaning: The design facilitates easy cleaning of the machine, preventing cross-contamination in hygiene-sensitive applications.
- High Efficiency in Fine Powder Production: Exceptional capability in reducing particle size down to the micron level.
Mechanism of Operation pin mill
Raw materials are fed through the inlet hopper to the center of the rotating disc (or between two discs). As the disc rotates, centrifugal force causes the materials to move outwards along the pins mounted on the discs. During this movement, the materials collide with the pins of the stationary disc (if present) and the pins of the rotating disc, undergoing intense shearing and impact stresses. These collisions break down and crush the materials into smaller particles. The grinding process continues until the particles become small enough to pass through the gaps between the pins or exit through the machine’s outlet.
Build Specifications pin mill
- Body Material: Stainless steel (SS304, SS316L) or high-carbon steel.
- Pin Material: Hardened alloy steel (e.g., tool steel) with high wear resistance.
- Motor: Standard industrial electric motors, with variable speed control (inverter) if required.
- Bearings: High-quality industrial bearings for durability and smooth operation.
- Sealing System: Use of appropriate sealing mechanisms to prevent dust leakage.
Component Descriptions pin mill
- Pins: The protruding, cylindrical elements mounted on the discs that perform the primary grinding function.
- Discs: Circular plates onto which the pins are mounted. At least one of these discs is rotating.
- Rotor / Shaft: The main shaft to which the rotating disc is connected and driven by the motor.
- Mill Housing: The outer enclosure where the entire grinding process takes place.
- Feed Inlet: The point where raw materials enter the machine.
- Outlet: The point where the powdered product exits.
- Electric Motor: The primary power source for the machine.
- Drive System: Includes coupling or belt and pulleys to connect the motor to the shaft.
We are a parts manufacturer, contact us for parts procurement As a manufacturer of specialized Pin Mill components, we produce various wear-resistant pins made from special alloy steels, discs, and other internal and external machine parts with the highest quality. Ensuring the accuracy and resistance of parts is key to achieving optimal performance and longevity for your Pin Mill. Contact us for price inquiries and to order parts.
Projects pin mill
- Description: Our Pin Mills have been successfully implemented in numerous projects across industries such as food (e.g., grinding spices, sugar, grains), chemicals (production of pigments, additives), pharmaceuticals (grinding of raw drug materials), and minerals (production of micronized powders). The capability of these machines to produce ultra-fine and uniform powders, along with adherence to sanitary standards in relevant models, makes them an ideal choice for achieving high-quality products in specialized projects.
