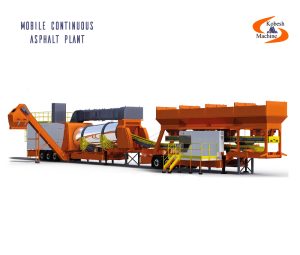

Mobile Continuous Asphalt Plant
Brief Product Description A Mobile Continuous Asphalt Plant is a modern, portable asphalt production unit designed for the continuous manufacturing of asphalt mix directly at the project site. Due to their rapid mobility and easy setup, these systems are ideal for scattered construction projects, rural roads, and areas requiring high flexibility in asphalt production. Unlike stationary batching plants, these mobile units allow asphalt to be produced exactly where it is needed, significantly reducing transportation costs and time.
Structural Features Mobile Continuous Asphalt Plant
- Modular and Portable Design: Key components (such as the dryer, mixer, dust collection system, tanks) are mounted on trailer chassis or portable bases.
- Integrated Dryer-Mixer: In many continuous models, the process of drying aggregates and mixing them with bitumen occurs within a single unit, increasing efficiency.
- Precise Weighing System: Advanced load cells ensure accurate proportions of aggregates, filler (dust), and bitumen.
- Automated Control System: PLC panel with a graphical user interface for parameter setting, process monitoring, and data logging.
- Efficient Dust Collection System: Includes cyclones and bag filters to comply with environmental standards.
- Bitumen Heating System: Boiler or direct burners to provide the appropriate bitumen temperature.
- Quick Setup Capability: Designed for quick transportation and commissioning.
Mobile Continuous Asphalt Plant
Mechanism of Operation Dry aggregates of appropriate grading are fed into the dryer via a feed conveyor. Inside the dryer, the aggregates are simultaneously dried and heated to the required temperature by hot air and rotation. The heated aggregates are then transferred to the mixer unit, where they are continuously blended with hot bitumen and filler powder (injected by the weighing system). The produced hot asphalt mix is immediately transferred to haul trucks by a discharge conveyor. The automated control system precisely adjusts and monitors all stages, from aggregate feeding to bitumen proportioning and temperature control.
Build Specifications Mobile Continuous Asphalt Plant
- Dryer and Mixer Material: Wear-resistant and high-temperature-resistant steel.
- Drive System: High-efficiency electric motors and industrial gearboxes.
- Heating System: Gas/diesel burners with adjustable flame.
- Sensors: Temperature, weight, and level sensors.
- Control System: Industrial PLC, touch HMI.
- Insulation: Use of high-quality thermal insulation materials in heated sections.
Component Introduction Mobile Continuous Asphalt Plant
- Component Descriptions
- Dryer Drum: The rotating cylinder for drying and heating aggregates.
- Mixer: The unit where aggregates are mixed with bitumen and filler.
- Feeder Conveyors: For transporting aggregates to the dryer.
- Transfer Conveyor: For moving heated aggregates from the dryer to the mixer.
- Discharge Conveyor: For transferring the produced asphalt to trucks.
- Burner: For generating hot air and heating aggregates.
- Cyclone: For preliminary dust separation.
- Bag Filter: For capturing fine dust particles.
- Bitumen Tank and Pump: For storing and injecting hot bitumen.
- Weighing System: Consisting of load cells and controllers.
- Boiler (in some models): For heating bitumen.
We are a parts manufacturer, contact us for parts procurement As a specialized manufacturer of asphalt plant components, we produce wear-resistant blades and liners for dryers and mixers, high-quality boiler and burner parts, bag filters, and advanced control systems manufactured to the highest standards. The quality assurance of our parts guarantees the service life and optimal performance of your asphalt batching plant. For pricing and to order the parts you need, please contact us.
Projects Mobile Continuous Asphalt Plant
- Description: Our mobile continuous asphalt plants have been successfully utilized in major projects for highway construction and repair, airports, rural roads, and industrial sites across the country. These plants enable the production of high-quality asphalt close to the point of use, resulting in significant savings in logistics costs and project execution time. Their flexibility, reliability, and compliance with environmental standards make these units an ideal choice for civil engineering contractors.
