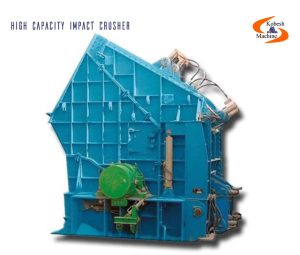

High capacity impact crusher

/ Products / By

High Capacity Impact Crusher – Unrivaled Crushing at High Volume

  • Brief Product Description: The High Capacity Impact Crusher is a modern and powerful solution designed for crushing a wide range of mineral materials, stones, concrete, glass, and recyclable materials with high volume and resistance. With its unique design and efficient impact system, this machine is capable of processing massive amounts of material in the shortest possible time and is engineered for large industrial projects and mines requiring mass production.

  • Structural Features: This crusher features an exceptionally robust body constructed from wear-resistant alloy steels, a powerful high-speed rotor, and adjustable, durable impact plates. An optimized input feed system allows for a large volume of material, and the wear-resistant internal liner plates ensure the machine’s longevity under the toughest working conditions.

  • Explanation of Operating Mechanism: Incoming materials are fed into the machine’s inlet and are then caught by the high-speed rotating rotor. The rotor is equipped with impact hammers that propel the materials with immense force towards the fixed impact plates on the inner wall. The intense collision between the materials and the impact plates, as well as between the materials themselves, breaks and crushes them into smaller pieces. The crushed materials are then discharged through the machine’s outlet. The adjustability of the impact plate distance allows for precise control over the final product size.

  • Manufacturing Specifications: The High Capacity Impact Crusher is designed and manufactured using the latest global technologies and the finest materials by experienced engineers. High resistance to wear, low vibration, and optimal energy efficiency are key features of its manufacturing process. Customization of dimensions and capacity according to specific project needs is also available.

  • Technical Specifications Table:

    Technical Specification Value / Range
    Production Capacity (Max) X to Y tons per hour
    Max. Input Size Z mm
    Output Size (Adjustable) A to B mm
    Total Power Consumption P kW
    Machine Weight W kg
    Dimensions (LWH) LWH meters

Introduction of Machine Parts:

  • Rotor: The heart of the machine; a robust steel disc or cylinder that is spun at high speed, onto which the impact hammers are mounted.
  • Impact Hammers (Beaters): Extremely durable metal components mounted on the rotor that deliver impact force to the materials.
  • Impact Plates (Liners): Wear-resistant steel plates installed on the inner wall of the machine where materials collide and are crushed.
  • Frame & Housing: The main, highly robust structure of the machine that encloses all components and resists operational stresses.
  • Drive System: Includes a powerful electric motor and a transmission system (such as belts or couplings) for rotating the rotor.
  • Discharge Chute: The section through which the crushed materials exit the machine.

We are a manufacturer of spare parts for this machine. Contact us to procure high-quality, genuine High Capacity Impact Crusher components that guarantee the longevity and efficiency of your machine.

Projects: The High Capacity Impact Crusher has been successfully deployed in major civil engineering projects, large mines for iron ore, granite, basalt, sand and gravel production plants, and construction and demolition waste processing sites. This machine, due to its high production capacity and reliability, is the preferred choice in industries requiring mass crushing.
