Gyratory Crusher

Brief product description The Gyratory Crusher is one of the most powerful and efficient types of primary crushers, primarily used for the initial crushing of hard, large rocks in mines and mineral processing industries. This machine is capable of reducing vast quantities of raw material to smaller sizes, paving the way for subsequent crushing and screening processes.

Structural features gyratory crusher

    • Very High Crushing Capacity: Designed to process enormous volumes of raw material in the shortest possible time.
    • Ability to Crush Coarse Materials: Ideal for large feed sizes (over 1 meter) that other crushers cannot handle.
    • Robust and Heavy-Duty Construction: Built from high-strength alloy steel for resistance against wear and impact, suitable for harsh mining conditions.
    • Unique Gyratory Mechanism: Utilizes a centrifugal rotary motion for effective material crushing.
    • Discharge Opening Adjustment System: Allows for precise adjustment of the final product size according to process requirements.
    • High Reliability and Low Maintenance Needs: Designed for long-term operation with minimal downtime.

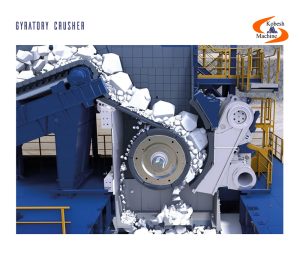

gyratory crusher

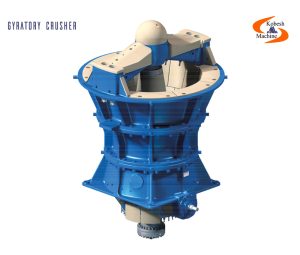

gyratory crusher

How it works (mechanism) A Gyratory Crusher consists of a central cone (Mantle) housed within a conical bowl or frame (Concave). This central cone is supported by a vertical shaft, which is backed at the bottom by a gyratory bearing. When the machine’s motor is activated, a centrifugal rotary motion is transferred to the central cone, causing it to move in a tilted, rotary (gyratory) motion within the bowl. Incoming material enters from the top of the machine and is trapped in the space between the central cone and the frame (bowl). With each gyratory movement, the material is compressed and crushed. The crushed particles then move downwards and are discharged from the machine’s outlet opening at the pre-set size.

Build specifications gyratory crusher

    • Main frame constructed from cast or welded steel with exceptional strength.
    • Mantle and Concave made from high-wear-resistant Manganese Steel.
    • Gyratory Bearing with precise design to handle heavy loads and ensure smooth motion.
    • Adjustment Mechanism, typically located at the bottom, allowing for precise control of the output size.
    • Centralized Lubrication System to ensure proper and continuous supply to the bearings.
    • Openable design at the top and bottom for easy access to internal components.
gyratory crusher

Technical specifications table gyratory crusher

    • Crusher Type: Primary Gyratory Crusher
    • Feed Opening Size: (e.g., 1000mm x 1500mm to 2000mm x 2500mm)
    • Discharge Product Size: (e.g., 100mm to 250mm)
    • Production Capacity: (e.g., 200 tons per hour to over 1500 tons per hour)
    • Motor Power: (e.g., from 75kW to over 400kW)
    • Approximate Machine Weight: (Tens of tons to over several hundred tons)
    • Wear Parts Material: Manganese Steel
gyratory Crusher spare parts

Component Introductions

  • Component Descriptions gyratory crusher
    • Main Frame: The base structure of the machine on which all other components are mounted.
    • Concave / Stationary Liner: The fixed conical part located on the outside, in contact with the material.
    • Mantle / Main Shaft: The moving conical part that crushes material through its gyratory motion.
    • Gyratory Bearing: The heart of the motion system, allowing the central shaft its gyratory movement.
    • Adjustment Mechanism: Controls the vertical movement of the concave to set the discharge opening size.
    • Spider Cap/Feed Plate: The component at the top where material enters the crushing chamber.
    • Lubrication System: Pumps, reservoirs, and piping for continuous grease or oil supply.

We are a parts manufacturer, contact us for parts procurement As a reputable manufacturer of crusher parts, we produce a wide range of spare and wear parts for Gyratory Crushers with the highest quality. These include mantles, concaves, parts for the gyratory bearing, adjustment mechanisms, and other essential components. Using high-strength, wear-resistant alloy steels and state-of-the-art technology, we ensure our parts offer extended service life and flawless performance. Contact us to procure the parts you need and enhance your machine’s longevity.

Projects gyratory crusher

  • Description: Our Gyratory Crushers have been installed and commissioned in major mining and material processing projects across the country. From iron ore and copper mines to aggregate production plants and cement factories, these machines play a vital role in the primary crushing stage. Their high reliability, exceptional output capacity, and ability to handle the toughest rocks make them the ideal choice for heavy industrial projects.
gyratory crusher

Kobesh Machine stands as a symbol of durability, high productivity, and secure industrial investment.
