Advanced Crushing Solutions by Kobesh Machine
With decades of continuous experience in the design and manufacturing of crushing equipment, kobesh machine is recognized as a leading manufacturer in the mining and asphalt industries.
Having successfully installed thousands of crushing machines worldwide, kobesh machine has built a strong reputation for reliability, performance, and engineering excellence across mining, road construction, and asphalt plant projects.
General Introduction of Cone Crusher
The Cone Crusher is one of the main pieces of equipment used in crushing lines for mining, sand and aggregate production, and mineral processing industries. This machine crushes stones by applying compressive force between the mantle and the concave, using the rotary motion of the main shaft to produce uniform and controlled particle sizes.
Applications
Secondary and tertiary crushing in mining operations
Aggregate and construction material production
Sand and gravel crushing lines
Crushing of hard and semi-hard rocks
Types of Cone Crushers

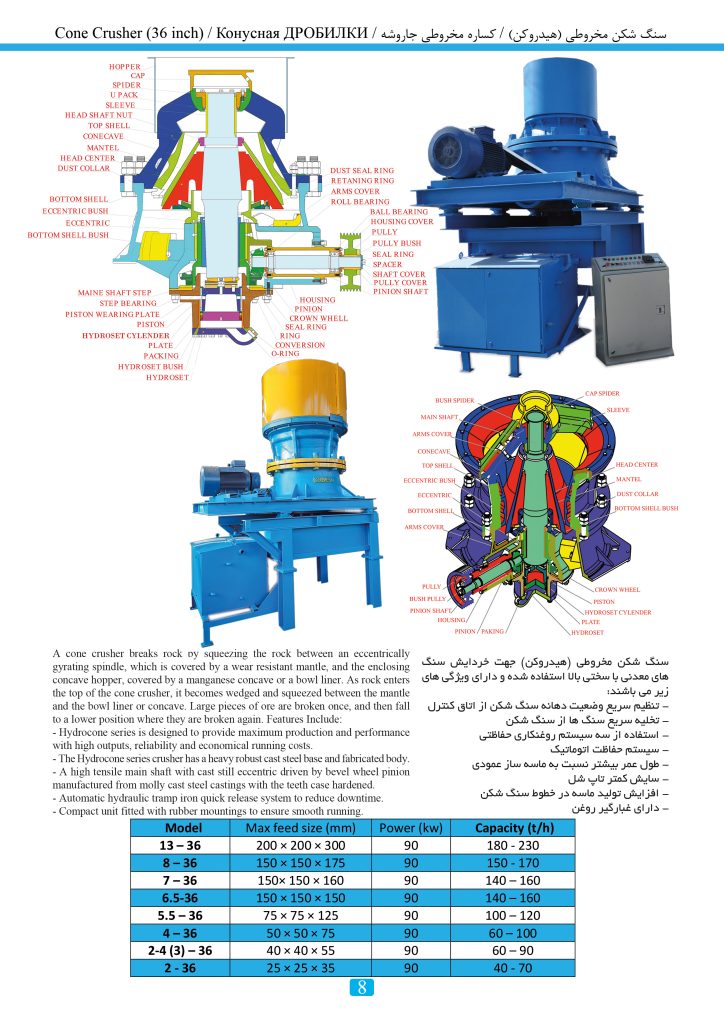

Based on the catalog images, the following cone crusher types are available:
🔹 Standard Cone Crusher
Suitable for conventional crushing applications
Classic mechanical design
Various models with fixed power rating (90 kW for 36-inch models)
🔹 Hydro Cone Crusher CH-CS
Equipped with a hydraulic system (Hydroset)
Fast and accurate setting adjustment
Higher safety and reduced downtime
Designed for heavy-duty industrial applications
🔹 GP Series Cone Crusher
Cone crusher design focused on high-capacity production
Suitable for high-tonnage crushing lines
Stable and continuous performance
Common Features of All Models
The following features are common across all cone crusher models shown in the catalog:
Heavy-duty vertical main shaft
Wear-resistant mantle and concave liners
Dust sealing system (Dust Seal Ring)
Industrial-grade bearings and bushings
Designed for continuous operation in crushing lines
High-capacity output with uniform product size

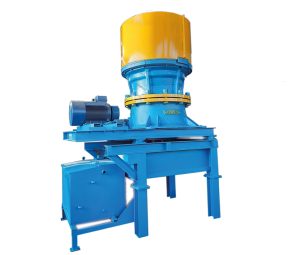

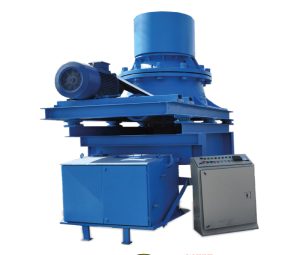

The 36-inch Cone Crusher is a key piece of equipment used in secondary and tertiary crushing stages in aggregate production plants. Utilizing a compressive crushing mechanism, this machine is designed for crushing hard and semi-hard rocks and delivers a uniform, well-controlled product size, significantly improving the quality of the final aggregates.
Structural Features
Heavy-duty industrial design with a robust steel frame and body
Use of wear-resistant mantle and concave liners
Hydroset system for adjusting the discharge opening
Automatic hydraulic protection system against uncrushable materials
High-tensile-strength main shaft
Durable bearings and bushings ensuring stable operation
Low vibration and smooth running due to rubber-mounted base
Suitable for producing high-quality sand and aggregates
Operating Mechanism Description
In a cone crusher, crushing is achieved through compression between the mantle and the concave.
The main shaft operates eccentrically, causing the mantle to move closer to and away from the concave. As material enters from the top, it is crushed in multiple stages while moving downward until it reaches the desired size.
The Hydroset system allows fast and precise adjustment of the discharge opening, providing effective control over product gradation.
Construction Specifications
Crusher type: Cone Crusher
Size: 36 inch
Crushing method: Compression
Installation type: Stationary
Adjustment system: Hydraulic (Hydroset)
Application: Aggregate plants and crushing & screening lines
Technical Specification Overview and Performance Range
This technical specifications table demonstrates the high operational versatility of the 36-inch cone crusher and enables users to select the most suitable model based on the requirements of the crushing line. As shown in the table, despite a constant power rating of 90 kW across all models, the production capacity varies from 40 to 230 tons per hour, depending on the feed size and crusher setting. This indicates that by adjusting the feed opening and discharge gap, the crusher can be effectively used for a wide range of applications, from fine crushing to high-capacity operations. In addition, the maximum feed size ranges from 25 × 25 × 35 mm up to 200 × 200 × 300 mm, clearly highlighting the flexibility and adaptability of this cone crusher for various mining and industrial projects.

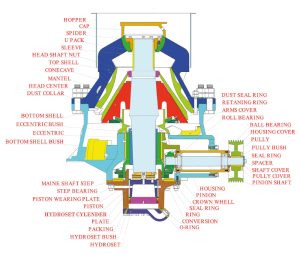

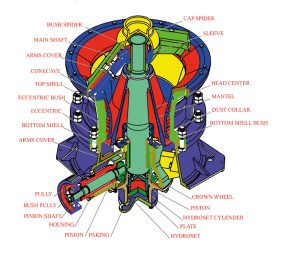

Component Descriptions
Based on the sectional and exploded views shown in the catalog, the main components include:
Mantle
The moving conical wear part responsible for the primary crushing action.Concave (Bowl Liner)
The fixed liner inside the crusher body against which material is compressed.Main Shaft
The central shaft that transmits eccentric motion to the mantle.Eccentric Bush
Creates the eccentric movement required for the crushing process.Hydroset Cylinder
Used for discharge opening adjustment and overload protection.Bearings and Bushings
Including step bearings, shell bushings, and roller bearings to reduce friction and increase service life.Dust Seal and Dust Collar System
Prevents dust and contaminants from entering internal components.
Project Description
The 36-inch cone crusher has been widely used in secondary and tertiary crushing projects in aggregate production plants.
With a capacity range of 40 to 230 tons per hour, a constant motor power of 90 kW, and adjustable discharge settings, this machine is well suited for projects requiring precise gradation and reliable long-term performance.
Typical applications include:
Hard rock quarries
Sand and aggregate production lines
Concrete and asphalt plants
Industrial grading and crushing lines
Kobesh Machine stands as a symbol of durability, high productivity, and secure industrial investment.
Contact Us
To receive tailored technical consultation, review high-capacity models, and select the most suitable solution aligned with the scale of your investment, please contact our executive team directly:
Sales Manager: +98 912 661 4519 — Alipour
R&D and Engineering Manager: +98 912 365 7790 — Alipour
Our specialists are ready to support you from technical evaluation to final equipment selection for large-scale and international projects.
Take control of crushing power—secure the future of your project.
