Comprehensive Guide to Screen Mesh in Mineral Industries and Crushers

/ Spare Parts / By

Specialized Article: Comprehensive Guide to Screen Mesh in Mineral Industries and Crushers

A deep dive into screen mesh types, materials, applications, maintenance principles, and extending service life.

—

Introduction Screen mesh is one of the most important and widely used consumable parts in mineral crushing and screening lines, playing a vital role in material separation and classification. Serving as the beating heart of screening lines, screens use screen mesh to separate materials based on size, producing products with specific particle sizes. Screen components, especially the meshes, require periodic inspection and timely replacement due to direct contact with materials and continuous abrasion. A thorough understanding of screen mesh types, materials used (metal, polyurethane, rubber), applications, maintenance principles, and correct mesh selection plays a crucial role in increasing production line efficiency, reducing repair costs, and improving final product quality. In this article, we will comprehensively explore screen mesh types, various materials (metal, polyurethane, rubber), applications, maintenance principles, and key tips for purchasing and extending the lifespan of this vital component.

—

Section 1: Understanding Screens and the Role of Mesh A screen is a device used for separating and classifying mineral materials into different sizes. This device vibrates, causing materials to move across the screen mesh surface. Finer particles pass through the mesh openings, while coarser particles remain on the screen. The screen mesh is effectively the heart of this process, and its quality has a direct impact on: · Screening accuracy · Production line capacity · Final product quality · Maintenance and replacement costs

Section 2: Types of Screen Mesh Based on Material

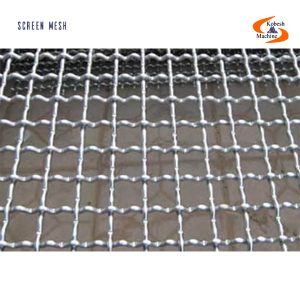

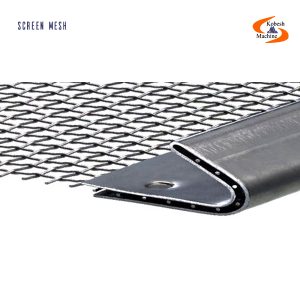

  1. Metal (Wire) Screen Mesh

    Metal screen mesh is the most common type, made from spring steel, manganese steel, and wear-resistant steel. These meshes are widely used due to their reasonable price and availability.

    Features:

    • Service Life: Typically 4 to 5 months (depending on material type and hardness)
    • Material: Spring steel, manganese steel, wear-resistant steel
    • Advantages: Reasonable price, variety in mesh sizes, repairable
    • Disadvantages: Shorter lifespan compared to polyurethane mesh, susceptibility to corrosion

    Applications:

    • Sand and gravel quarries
    • Crushing lines for soft to semi-hard rocks
    • Construction and road building industries

  2. Polyurethane Screen Mesh

    Polyurethane screen mesh is made from polymer materials with high abrasion resistance and is considered a modern alternative to metal meshes.

    Features:

    • Service Life: 3 to 5 times longer than metal mesh
    • Abrasion Resistance: Very high
    • Corrosion Resistance: Excellent
    • Weight: Lighter than metal mesh
    • Noise: Reduces noise by up to 50% compared to metal mesh

    Advantages:

    • Longer lifespan
    • Reduced production line downtime
    • More accurate screening
    • Resistance to moisture and chemicals
    • Easier installation

    Disadvantages:

    • Higher price compared to metal mesh
    • Sensitivity to high temperatures
    • Not repairable if torn

    Applications:

    • Quarries with abrasive and hard materials
    • Sand and gravel washing lines (water resistance)
    • Food and chemical industries
    • Projects requiring high precision

  3. Rubber Screen Mesh

    Rubber screen mesh is made of resistant rubber and is suitable for specific applications like sticky and wet materials.

    Features:

    • Flexibility: High
    • Impact Resistance: Excellent
    • Noise Reduction: Very effective

    Advantages:

    • Suitable for sticky and wet materials (reduces blinding)
    • Significant noise reduction
    • Good abrasion resistance
    • Relatively long lifespan

    Disadvantages:

    • Less screening accuracy compared to metal and polyurethane mesh
    • Medium price

    Applications:

    • Quarries with high moisture content
    • Fertilizer and organic material production lines
    • Recycling industries

  1. Wear-Resistant Steel Screen Mesh

    Wear-resistant steel screen mesh is made from special alloys with high abrasion resistance and is designed for the toughest working conditions.

    Features:

    • Service Life: Longer than ordinary metal mesh
    • Abrasion Resistance: High
    • Price: Higher than ordinary metal mesh

    Applications:

    • Iron ore, copper, and gold mines
    • Crushing of extremely hard rocks (basalt, granite)
    • High-capacity production lines

—

Section 3: Types of Screen Mesh Based on Manufacturing Method

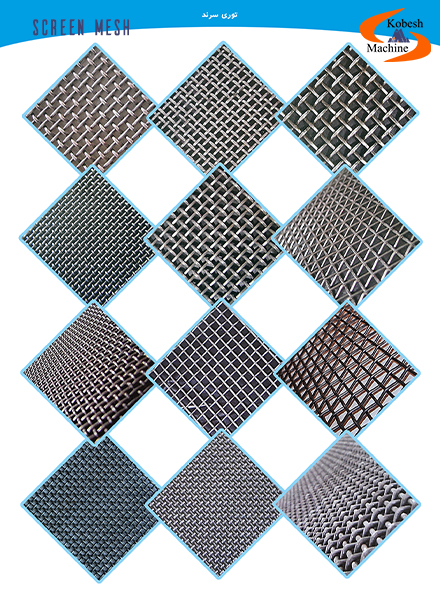

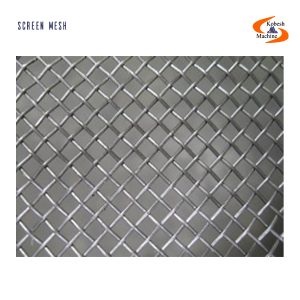

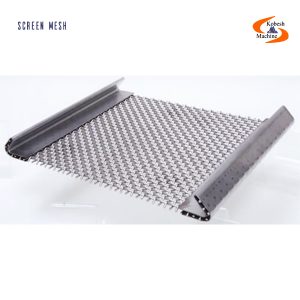

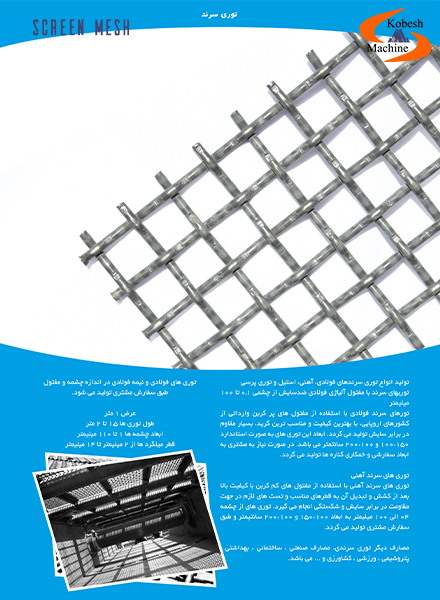

  1. Woven Wire Mesh

    This type of mesh is produced by weaving metal wires in warp and weft. It is the most common type of screen mesh.

    Features:

    • Square or rectangular openings
    • Good flexibility
    • Can be produced in various dimensions
    • Reasonable price

  2. Punched Plate (Screen Plate)

    This type of mesh is made from metal sheets with punched holes and is suitable for heavy-duty applications.

    Features:

    • Very high strength
    • Long service life
    • Suitable for highly abrasive materials
    • Higher price

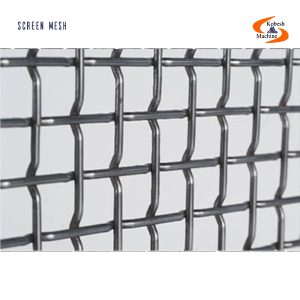

  3. Welded Mesh

    This type of mesh is produced by welding wires together at their contact points and has high strength.

    Features:

    • High strength
    • Good screening accuracy
    • Medium price

Section 4: Types of Screen Mesh Openings

The size of the screen mesh opening is determined by the production line’s requirements and the type of product:

  1. Square Opening

    This is the most common type of opening, used for standard grading.

    Applications:

    • Production of standard sand and gravel
    • General grading lines

  2. Slot Opening

    This type of opening is suitable for materials with high moisture content and sticky materials, reducing the likelihood of screen blinding.

    Applications:

    • Wet and sticky materials
    • Washing lines

  3. Triangular and Special Openings

    Used for specific applications and materials with unique characteristics.

    Applications:

    • Precise grading
    • Specialized mining industries

—

Section 5: Vibrating Screen Accessories

In addition to the screen mesh, other components also play an important role in the vibrating screen:

  1. Vibrator Motor

    The vibrator motor is responsible for creating vibration in the screen and provides the necessary force for material movement across the mesh.

  2. Screen Spring

    Screen springs serve for suspension and vibration absorption, preventing the transfer of tremors to the main structure.

  3. Screen Decks

    Screen decks are frames onto which the meshes are installed. Screens are typically manufactured with 2, 3, or 4 decks.

  4. Screen Frame (Chassis)

    The screen frame supports all components and must have high structural integrity.

  5. Screener Pan

    The screener pan is used to collect the material that passes through the mesh and guide it to the output.

—

Section 6: Guide to Buying Screen Mesh

Key Points When Buying Screen Mesh:

  1. Mesh Material

    • Soft and low-abrasive materials: Ordinary metal mesh is suitable.
    • Hard and abrasive materials: Polyurethane or wear-resistant steel mesh.
    • Wet and sticky materials: Rubber mesh or slot openings.

  2. Mesh Size (Aperture)

    Selected based on the desired final product grading:

    • For fine sand: 2-6 mm
    • For pea gravel: 6-12 mm
    • For almond-sized gravel: 12-25 mm
    • For oversized gravel: Above 25 mm

  3. Mesh Dimensions

    The mesh must be precisely sized to fit the screen dimensions (length, width, and thickness):

    • Standard screen dimensions: From 4×1.5 meters to 6×2 meters
    • Mesh thickness: Based on material weight and abrasion intensity

  4. Manufacturing Method

    • Lightweight and general materials: Woven mesh
    • Heavy and abrasive materials: Punched or welded mesh

  5. Brand and Quality

    • Purchase from reputable manufacturers.
    • Verify production standards.
    • Request warranty and after-sales service.

Factors Affecting the Price of Screen Mesh:

  • Raw material type (steel, polyurethane, rubber)
  • Manufacturing method (woven, punched, welded)
  • Mesh dimensions and thickness
  • Mesh size
  • Manufacturer brand
  • Exchange rates and market conditions

Section 7: Principles of Maintenance and Extending Screen Mesh Lifespan

Warning Signs for Screen Mesh Replacement:

  1. Torn or Broken Mesh: Causes coarse material to pass through, contaminating the product.
  2. Stretched Mesh: Reduces grading accuracy.
  3. Blinded Openings: Decreases production line capacity.
  4. Excessive Wear: Reduces wire thickness and increases the risk of tearing.
  5. Reduced Screen Efficiency: Indicates mesh damage or wear.

Golden Tips for Extending Screen Mesh Lifespan:

  1. Daily Inspection: Check the mesh for tears, stretching, and blinding.
  2. Regular Cleaning: Prevent material accumulation in the openings (especially with wet materials).
  3. Adjust Mesh Tension: Install the mesh with appropriate tension (neither too loose nor too tight).
  4. Uniform Feeding: Avoid sudden heavy material loads on the mesh.
  5. Select Appropriate Material: Choose mesh suitable for the type of material (abrasiveness, moisture, temperature).
  6. Correct Installation: Use suitable support components and standard fasteners.
  7. Check Vibration System: Properly adjust the vibrator motor and springs.

—

Section 8: Screen Mesh Quality Standards

To ensure the quality of screen mesh, the following should be checked:

International Standards:

  • ASTM E11: For laboratory and industrial sieves.
  • ISO 9044: For industrial sieves.
  • DIN 4197: For metal sieves.

Quality Tests:

  1. Abrasion Test: Checks the mesh’s resistance to wear.
  2. Tensile Test: Checks mechanical strength.
  3. Grading Test: Verifies the accuracy of the openings.
  4. Visual Inspection: Checks for uniformity of weave and absence of visual defects.

—

Section 9: Summary and Final Recommendations

Screen Mesh Management Checklist for Mines:

  1. Identify Needs: Determine the material and mesh size based on material type and product.
  2. Strategic Inventory: Keep at least 2-3 spare meshes of each size in stock.
  3. Periodic Replacement Schedule: Create a replacement calendar based on operating hours and wear levels.
  4. Cooperate with a Reputable Supplier: Establish long-term relationships with manufacturers.
  5. Personnel Training: Train operators and maintenance staff for early problem detection.
  6. Continuous Monitoring: Daily check of mesh condition and record operating hours.

Concluding Remarks

Screen mesh, as one of the most important consumable parts in crushing and grading lines, plays a vital role in final product quality and production line efficiency. Correct selection of material and mesh size, along with proper maintenance, can extend the useful life of the mesh several times over and significantly reduce repair costs and production line downtime.

Investing in high-quality screen mesh is not an expense, but a smart move to ensure production continuity, reduce unscheduled stoppages, and increase profitability.

—

🔷 Kubesh Machine – Specialized Supplier of Screen Mesh and Its Parts

With over 3 decades of experience in designing and manufacturing crushing and grading equipment, Kubesh Machine is proud to offer various types of screen mesh in different materials and of the best quality to its customers nationwide and in the region.

Available Screen Mesh Types:

  • Metal Screen Mesh (Spring Steel, Manganese Steel, Wear-Resistant Steel)
  • Polyurethane Screen Mesh (3 to 5 times longer lifespan than metal)
  • Rubber Screen Mesh (Suitable for wet and sticky materials)
  • Punched Screen Mesh (Perforated sheets for heavy materials)

Features of Kubesh Machine Screen Mesh:

✓ Manufactured with the best raw materials and standard alloys. ✓ Precise and uniform openings for excellent grading. ✓ High wear resistance and long lifespan. ✓ Dimensions compatible with all screen models available in the market. ✓ Custom production available based on customer needs.

Other Available Screen Parts:

  • Vibrator motors in various power ratings.
  • Screen springs in different types.
  • Screen decks for 2, 3, and 4-deck models.
  • Screener pans and screen frames.
  • Fasteners and mesh support components.

Express shipping nationwide and to countries in the region.

📞 Contact Us:

Alipour Brothers — Kubesh Machine

📱 Amir Alipour: +989121943801 📱 Yousef Alipour: +989123657790 📱 Abdolhossein Alipour: +989126614519

🔥 Kubesh Machine – Powering Your Production
