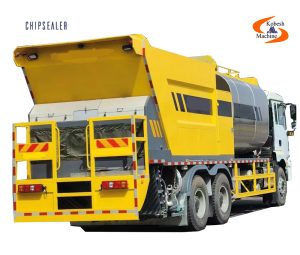

Chipsealer Machine
Brief Product Description The Chipsealer machine is a highly equipped and efficient road construction equipment designed for applying a Chip Seal layer on asphalt or concrete surfaces. Chip seal is a pavement maintenance and rehabilitation method that involves applying a thin layer of emulsified or modified bitumen, followed by the closely spread application of chippings (aggregate). This process enhances the pavement’s resistance to water penetration, extends the road’s service life, and provides an aesthetically pleasing appearance. The Chipsealer machine performs this operation integrally and with high precision.
Structural Features Chipsealer Machine
- Robust and Mobile Chassis: Typically mounted on a truck chassis, allowing for easy road transportation.
- Bitumen Tank: Insulated and equipped with a heating system (usually a diesel burner or electric heater) to maintain the proper bitumen temperature.
- Bitumen Spray Bar: Features multiple adjustable nozzles for uniform bitumen application across various widths.
- Aggregate Hopper: With adequate capacity for storing the required aggregate.
- Aggregate Feed and Spreading System: Includes a conveyor belt and a closely spreading system that uniformly distributes the aggregate over the bitumen.
- Hydraulic Control System: For precise control of the machine’s speed, bitumen application rate, and the aggregate spreading system’s operation.
- Driver and Operator Cabin: Equipped with necessary displays and controls for monitoring and guiding the operation.
- Dust Collection System (in advanced models): To reduce dust emission during operation.
Chipsealer Machine
Mechanism of Operation The Chipsealer machine is first transported to the project site by truck. The emulsified or modified bitumen, heated to the operational temperature in the machine’s tank, is then uniformly applied as a layer onto the road surface by the spray bar. Immediately after bitumen application, the chippings stored in the machine’s hopper are uniformly and closely spread onto the bitumen layer by the feed and spreading system. The application rates of bitumen and aggregate are precisely set by the control system according to project specifications. Finally, the applied surface is compacted by specialized rollers (usually a separate machine).
Build Specifications Chipsealer Machine
- Chassis: Standard truck (typically 2 or 3 axles).
- Bitumen Tank: Steel with insulation (e.g., fiberglass wool or similar material).
- Bitumen Heating System: Automatic diesel burner or electric heaters.
- Bitumen Spray Nozzles: Wear-resistant stainless steel.
- Aggregate Conveyor Belt: Durable rubber belt.
- Hydraulic System: High-quality pumps, motors, and hydraulic valves.
- Control System: PLC and touch HMI.
Component Introduction Chipsealer Machine
- Component Descriptions
- Truck Chassis: The main structure supporting the machine.
- Bitumen Tank: Where bitumen is stored and heated.
- Bitumen Pump: For transferring bitumen to the spray system.
- Spray Bar: Consists of nozzles for bitumen application.
- Aggregate Hopper: Stores the chippings.
- Aggregate Conveyor Belt: Transports aggregate from the hopper to the spreading point.
- Aggregate Spreader: For closely spreading aggregate.
- Control Panel: Operator panel for setting parameters.
- Engine and Hydraulic System: Provides power to the machine.
- Burner: For heating the bitumen tank.
We are a parts manufacturer, contact us for parts procurement As a specialized manufacturer of Chipsealer machine parts, we produce high-precision bitumen spray nozzles, durable bitumen pumps, robust aggregate conveyor belts, and control system components. The quality of our parts guarantees precise application and a long service life for your machine. For price inquiries and to order the parts you need, please contact us.
Projects Chipsealer Machine
- Description: Our Chipsealer machines have been utilized in numerous road maintenance and rehabilitation projects, including highways, airports, parking lots, and industrial sites across the country. By efficiently and precisely applying the chip seal layer, these machines significantly contribute to extending pavement life, improving surface geometric properties (such as friction and skid resistance), and reducing long-term maintenance costs. The ability to operate at various widths and with different types of emulsified and modified bitumens makes these machines an essential tool for road authorities and contracting companies.
